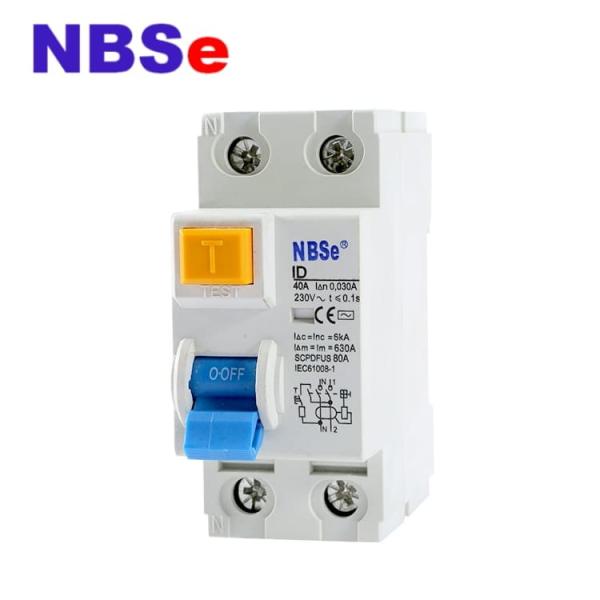

30mA 100mA 300mA Rccb Circuit Breaker,Differential Circuit Breaker
Description of Residual Current circuit breaker
ID residual current circuit breaker is suitable to the circuit of AC50/60Hz.rated voltage 230V for 2
poles and 400V for 4 poles, and rated current up to 63A. When
people get the electric shock, or the leakage current of the
electrical network exceeds the fixed value, this RCCB can cut off
the fault current in short period to protect people safty and the
equipments. It is applicable to industrial area, commercial area,
tall building and civil house. It complies with standard IEC/EN
61008.1 and GB1696.1
Features of earth leakage circuit breaker
1).Provides protection against electric shock, earth fault, leakage
current;
2).Fire resistant plastic casing endures abnormal heating and
strong impact;
3). Improved mechanical and bimetallic system provides more precise
tripping
4).Equipped with finger protected in connection terminals;
5). Both terminal wiring and busbar wiring are available
6). Small size and weight, easy installation and wiring, high and
durable performance
Main Technical Specification of earth leakage circuit breaker
| Standard | | IEC61008-1 |
| Rated current (In) | A | 25,40,63 |
| Poles | P | 2,4 |
| Rated voltage (Un) | V | 230/400 |
| Rated Residual Operating Current | mA | 30, 100, 300, 500 |
| Insulation voltage (Ui) | V | 500 |
| Rated Conditional Short-circuit Current(Inc) | A | In=25A, 40A Inc=1500A |
| In=63A Inc=3000A |
| Break time under In | s | <0.1 |
| Rated frequency | Hz | 50/60 |
| Rated impulse withstand voltage(1.2/50)Uimp | V | 6000 |
| Dielectric test voltage at ind Freq for 1 min | kV | 2.5 |
| Pollution degree | | 2 |
| Electrical life | t | 4000 |
| MechanicaI Iife | t | 20000 |
| Fault current indicator | | Yes |
| Protection degree | | IP20 |
30mA 100mA 300mA Rccb Circuit Breaker,Differential Circuit Breaker
| Working Envirnment |
| Humidity | 40℃ humidity notexceed 50% 20℃ humidity not exceed 90% |
| (Condensation on the product due to |
| changes in humidity has been considered) |
| Working Temperature | -5℃~+40℃ and its average over aperiod of 24h does not exceed |
| Magnetic field | No more than 5 times the geomagnetic field |
| Pollution level | 2 |
| Altitude(m) | 2000 |
|
| Mounting and Wiring |
| Shock and vibration | Should be installed in the case of no obvious impact vibration |
| Installation category | Ⅲ |
| Terminal connection types | type cable,type U bus, TH 35mm Din-rail |
| Wiring terminal connection conductor | 1.5～25 mm² |
| Wiring terminal copper size | 25 mm² |
| Tightening torque | 3.5N*m |
| Installation mode | UsingTH35-7.5 profile installation, the title of |
| installation face and vertical face is not greater than5° |
| Wiring incoming mode | upper and lower incoming is possible for ELM type, |
| only upper incoming for ELE type |
OPERATION PRINCIPLE FIG.
30mA 100mA 300mA Rccb Circuit Breaker,Differential Circuit Breaker
Sensitivity of RCCB
A human being is able to sustain an electric shock to the extent of
30 mA. While upto 10 mA may just evoke a prickling sensation, 10 mA
onwards may lead to muscular contraction, further leading to a
respiratory paralysis at around 30mA. RCCBs are therefore designed
to look for small changes in residual current. In cases where
protection from fire is sought, RCCBs are also used to track higher
changes in residual current of up to 300mA.
OUR FACTORY
FAQ:
Q1: What's your product Range?
A.
- Shell Unti-fire. nylon pa66 or not unti-fire.
- Parts, Copper or iron
- Point Sliver point or Copper point
Q2: Are you a manufacturer?
A. Yes, we are only produce the circuit breaker over 20 years from 1999.
Q3: Do you have stock products to sell?
A. No,we work on OEM orders, The means, material, quantity,packing
solution,etc will depend on your requests.obviously, your logo can
be printed on the products.
Q4. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q5. how's the delivery time ?
A. usually it will take about 30 days for 30000pcs
Q6. tell me the standard of package?
A. Normally are cartons, color box or white box
Q7. what kind of material of circuit breaker?
A. we have two types, one copper coil with silver point and the
other is brass coil with copper point. It depends on your
requirement. In fact, those two have no difference if normal work
well. Only except the electrical life. Copper and silver is better
and also higer price.
Q8. We want to know month capacity.
A. 400,000pcs/month
Q9. Where is your market?
A. Our products are popular in Western Europe, Middle-East, Afirca, South Asia ,South Ameirca
countries and area. Some of them are our regular customers and some of them are
developing. We hope you can join us and make mutural benifit from
our cooperation.
Q10. what kind of certificate you have ?
A. CE, CB,CCC,ISO9000.
Q11. Do you inspect the finished products
A. Yes.Each step of products will be inpected by QC department
before shipping.
Q12. How are you ship the finished products?
- By Sea
- By plane
- By counties,TNT, DHL,FEDEX,UPS.etc.
