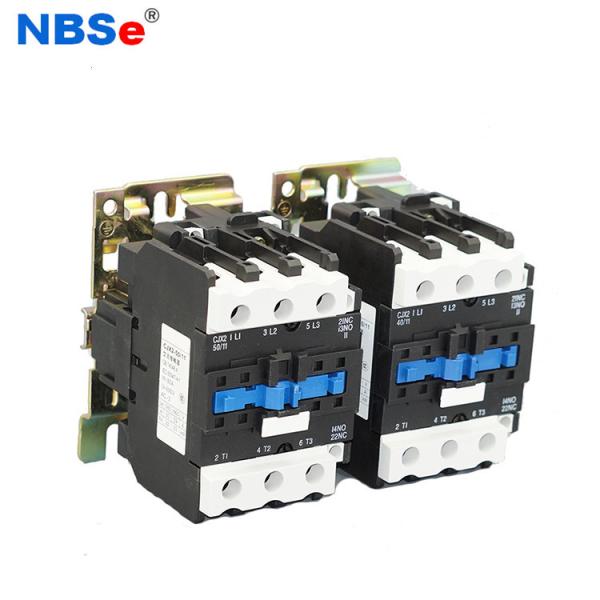

LC2-65N AC Electrical Interlocking Contactors , Magnetic Motor Contactor CJX2-6511N

    Buy cheap LC2-65N AC Electrical Interlocking Contactors , Magnetic Motor Contactor CJX2-6511N from wholesalers

    Buy cheap LC2-65N AC Electrical Interlocking Contactors , Magnetic Motor Contactor CJX2-6511N from wholesalers
    • Buy cheap LC2-65N AC Electrical Interlocking Contactors , Magnetic Motor Contactor CJX2-6511N from wholesalers
    • Buy cheap LC2-65N AC Electrical Interlocking Contactors , Magnetic Motor Contactor CJX2-6511N from wholesalers
    • Buy cheap LC2-65N AC Electrical Interlocking Contactors , Magnetic Motor Contactor CJX2-6511N from wholesalers
    • Buy cheap LC2-65N AC Electrical Interlocking Contactors , Magnetic Motor Contactor CJX2-6511N from wholesalers

    LC2-65N AC Electrical Interlocking Contactors , Magnetic Motor Contactor CJX2-6511N

    Ask Lasest Price
    Brand Name : NBSe
    Model Number : CJX2-6511N
    Certification : CE,ISO9000
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100,000pcs per month
    Delivery Time : 10-20days
    • Product Details
    • Company Profile

    LC2-65N AC Electrical Interlocking Contactors , Magnetic Motor Contactor CJX2-6511N

    CJX2-6511N LC2-65N 220V 65A AC electric interlock magnetic contactor

    Product Description
    Application:


    CJX2-N series revering contactor is suitable for use in the circuits of 50Hz / 60Hz ,the rated insulastion voltage 690V, and rated current to 800A ,convertible controlling the motor. For remotecontrolling circuit making, breaking and frequent starting AC motors. It can be also combine withthe auxiliary contact group,time-delay block,air delayer, thermal overload relay devices etc.
    This product conforms to GB14048.4, IEC60947-4-1 standard.


    Model Explanation:


    Normal Running And Installtion Conditions:

    1. Ambient air temperature: -5℃+40℃. the average value should not exceed +35℃ within 24 hours
    2. Elevation: at most 2000m.
    3. Atmospheric conditions: When the temperature at 40℃,the relative humidity of atomsphere should be
    at the most 50%.When at relatively low temperatures, it could have higher relative humidity.Monthly maximum relative humidity could be not more than 90%.Special measures should be taken due to occurrence of dews.
    4. Class of pollution:Class 3
    5. Installation category: Ⅲ
    6. Installation conditions: Degree of inclination between fitting surface and vertical surface should not exceed II
    7. Impact shock: Product should be installed and used in the place where often shakes and impacts.


    Main Technical Parameter:

    TypeRated current
    AC-3(A)
    Controlled power (KW)
    220V380V415V440V660V
    CJX2-09N92.24445.5
    CJX2-12N125.55.55.55.57.5
    CJX2-18N187.57.59910
    CJX2-25N255.511111115
    CJX2-32N327.515151518.5
    CJX2-40N4018.518.5222230
    CJX2-50N501522253033
    CJX2-65N6318.530373737
    CJX2-80N802237454545
    CJX2-95N952245454541
    CJX2-115N1153055595980
    CJX2-150N15040758080100
    CJX2-170N1705590100100110
    CJX2-205N20563110110110129
    CJX2-245N24575132132132160
    CJX2-300N300100160200200220
    CJX2-410N410110220250250280
    CJX2-475N475147265280280355
    CJX2-620N620200335400400450
