NBSe CJX2 AC Contactor Electrical Magnetic Contactor 35mm Din Rail Mounting

Ask Lasest Price
Brand Name :	NBSe
Model Number :	CJX2
Certification :	CCC,CE,ISO9000
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100,000pcs per month
Delivery Time :	10-20days

Add to Cart

Product Details
Company Profile

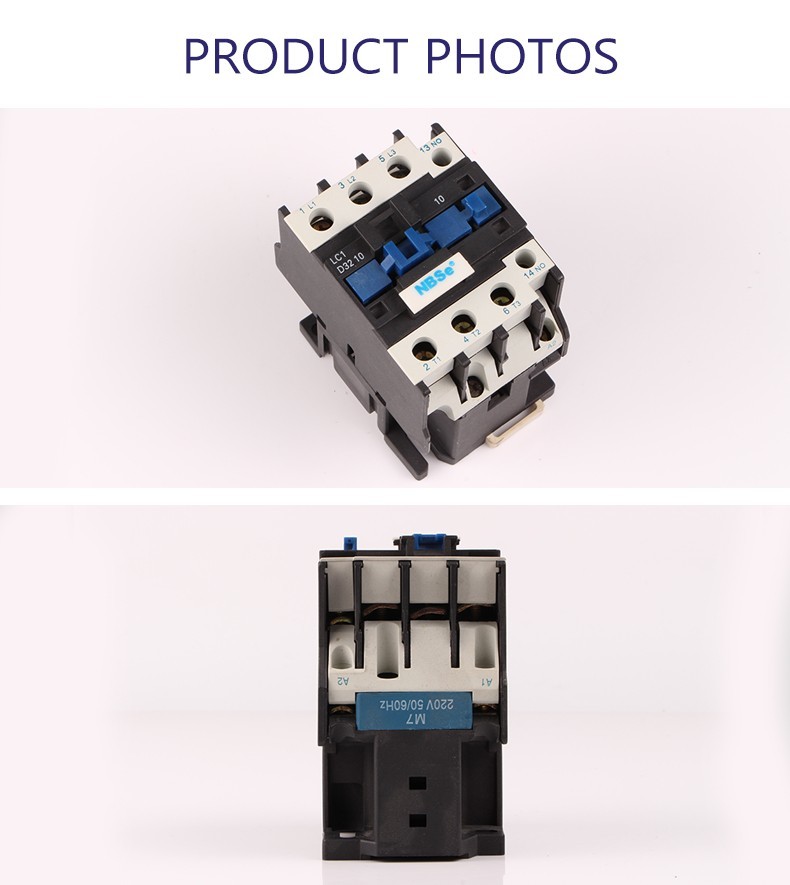

NBSe CJX2 AC Contactor Electrical Magnetic Contactor 35mm Din Rail Mounting

NBSe CJX2 Series AC contactor magnetic ac contactor 220v

Application

LC1 series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to IEC947-2, VDE0660 & BS5452.

Specifications

Type		CJX2-D09	CJX2-D12	CJX2-D18	CJX2-D25	CJX2-D32
Rated working current(A)	AC3	9	12	18	25	32
Rated working current(A)	AC4	3.5	5	7.7	8.5	12
AC3 capacity of phase 3 squirrel-cage motor AC3(KW)	220/230V	2.2	3	4	5.5	7.5
	380/400V	4	5.5	7.5	11	15
	415V	4	5.5	9	11	15
	440V	4	5.5	9	11	15
	500V	5.5	7.5	10	15	18.5
	660/690V	5.5	7.5	10	15	18.5
Rated heat current(A)		20	20	32	40	50
Electrical life	AC4X104	20	20-15	20-7	15-7	15-7
Electrical life	AC3X106	2	2	2	2	2
Mechanical		20	20	20	20	20
number of the contact	3P+NO
number of the contact	3P+NC

NBSe CJX2 AC Contactor Electrical Magnetic Contactor 35mm Din Rail Mounting

Company and Service

Wenzhou New Blue Sky Electrical Co,ltd

located in Wenzhou,Zhejiang is an important economic center in South Gulf Coast, Registered trade mark is “NBSe”.
As one of the top supplier of electrical appliances, We focus on the field of low voltage appliances power distribution,electrical equipment and Industrial automation equipment.

Main products: circuit breaker, moulded case circuit breaker, Isolator switch,contactor,Thermal relay, electrical meter, distribution box, etc.

Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,NOM,ROHS,PCT, CCC etc.

Business strategies &Characristic: Quality,Honesty and technological innovation are the corner stones of our company's business strategy.
We are trying to develop NBSe into a world-class Electrical manufacturer.

FAQ:
Q1: What's your product Range?
A.
- Shell Unti-fire. nylon pa66 or not unti-fire.
- Parts, Copper or iron
- Point Sliver point or Copper point

Q2: Are you a manufacturer?
A. Yes, we are only produce the circuit breaker over 20 years from 1999.

Q3: Do you have stock products to sell?
A. No,we work on OEM orders, The means, material, quantity,packing solution,etc will depend on your requests.obviously, your logo can be printed on the products.

Q4. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q5. how's the delivery time ?
A. usually it will take about 30 days for 30000pcs

Q6. tell me the standard of package?
A. Normally are cartons, color box or white box

Q7. what kind of material of circuit breaker?
A. we have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the electrical life. Copper and silver is better and also higer price.
Q8. We want to know month capacity.
A. 400,000pcs/month
Q9. Where is your market?
A. Our products are popular in Western Europe, Middle-East, Afirca, South Asia ,South Ameirca countries and area. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q10. what kind of certificate you have ?
A. CE, CB,CCC,ISO9000.

Q11. Do you inspect the finished products
A. Yes.Each step of products will be inpected by QC department before shipping.

Q12. How are you ship the finished products?
- By Sea
- By plane
- By counties,TNT, DHL,FEDEX,UPS.etc.
