    3P Industrial Type Circuit Breaker Type D Mcb NBSM30-125 Series Din Rail Installation

    Ask Lasest Price
    Brand Name : NBSe
    Model Number : NBSM30-125
    Certification : CE,CB,CCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 400,000pcs per month
    Delivery Time : 10-20days
    • Product Details
    • Company Profile

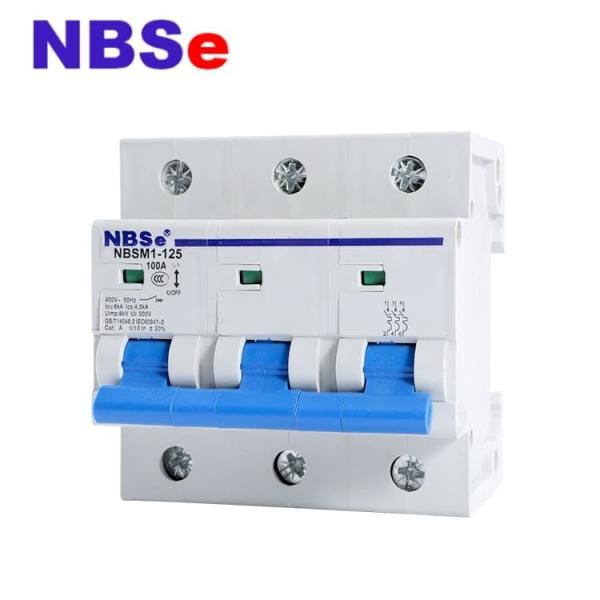

    3P Industrial Type Circuit Breaker Type D Mcb NBSM30-125 Series Din Rail Installation

    NBSM30-125 Series MCB AC 3P 100A 230/400V Industrial Circuit Breaker, type d mcb


    Description:


    The NBSM1-125 Industrial breaker is our new design with patent, characterized by compact design, light weight, elegant appearance, high breaking capacity, swift releasing, long service life, Different handle color for different rated current, with contactor condition indicator.


    The circuit breaker can protect people against indirect contact with dangerous electric current and prevent fire disaster caused by insulation fault and single-phase ground fault.It can be used to distribute electric power and protect power equipment against overload and short circuit.The circuit breaker can change the circuit and start motor infrequently.


    The rated residual operating current and the maximum off-time can be adjusted on-site according to actual situation,the circuit breaker can be customized alarm function and no tripping


    Applications:


    Technical Data
    ♦ Standard:Confirming to EN / IEC60947-2
    ♦ Breaking capacity:6kA
    ♦ Protection:Against overload and short circuit
    ♦ Rated current In:16,25,32,40,50,63,80,100,125A
    ♦ Rated voltage:
    ◊ 1pole 230/400V AC 50/60Hz
    ◊ Rated insulation voltage Ui: 500V
    ◊ Rated impulse withstand voltage Uimp: 6000V
    ◊ Energy limiting class: 3
    ♦ Ambient temperature:-5°C to +40°C pursuant to EN / IEC60947-2
    ♦ Characteristic:
    ◊ Thermal operating limit: (1.13-1.45) x In
    ◊ Magnetic operating: D: (10-20) x In
    ♦ Number of poles:1P,1P+N,2P,3P,3P+N and 4P
    ♦ Type of trip:Thermal / magnetic release
    ♦ Type of terminal:Lug type and Pin type
    ♦ Terminal capacity:
    ◊ 16mm² flexible or 25mm² rigid up to 25A ratings
    ◊ 25mm² flexible or 35mm² rigid for 32A to 80A ratings
    ◊ 35mm² flexible or 45mm² rigid for 100A to 125A ratings
    ♦ Protection degree:IP20
    ♦ Installation:DIN rail
    ♦ Width:18mm per pole
