MCB 9mm 1 Pole Wifi Micro Circuit Breaker Smallest Mcb Miniature
Circuit Breakers
Advantages
Half module(9mm) is ideal to save valuable switchboard space.
Required by more and moreelectrical compliance, the household also
need more and more circuit breaker to protect. It is small, but
work as reliably as normal mini circuit breaker.
- Pole No.: 1,1P+N,2.3,3P+N,4
- Rated voltage: AC 230/400V
- Rated current(A); 6,10,16,20,25,32,40
- Tripping curve: B,C
- Rated short-circuit capacity(lcn): 6000A
- Rated service short-circuit breaking capaciyl(lcs): 6000A
- Rated frequency: 50/60Hz
- Energy limiting class: 3
- Electro-mechanical endurance: 8000
- Connection terminal: Screw terminal Pillar terminal with clamp
- Connection capacity: Rigid conductor up to16mm?
- Fastening torque: 2.0N.m
| Standard | | IEC60898 |
| Number of poles | | 1P,2P,3P,4P |
| Rated current(In) | | 6,10,16,20,25,32,40,50,63 |
| Rated voltage(Un) | | AC240/415V |
| Rated frequency | | 50/60Hz |
| Tripping curve | | B,C,D |

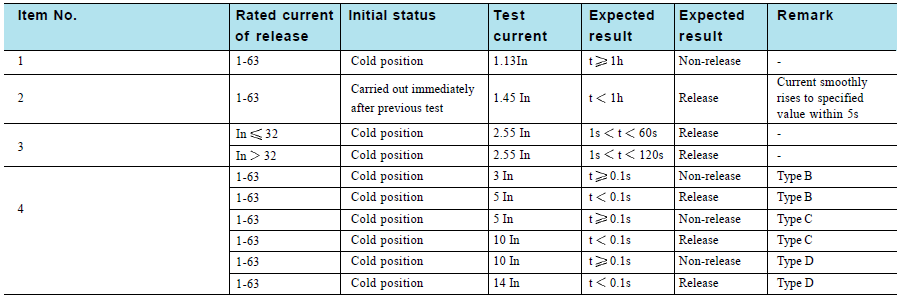

| Release action characteristics | Time delay | 1.13In>1h Non-trip |
| 1.45In<1h trip |
| 2.55In 1s~60S trip |
| Instantaneous(Curve C) | 5In >0.1s Non-trip |
| 10In<0.1s trip |
| Magnetic releases operate | | B curve:between 3 and 5In |
| C curve :between 5 and 10In |
| D curve: between 10 and 15In |
| Ratedbreaking capacit(Lcn) | | 6000A |
| Endurance | | >2500 |
| Circumstance temperature | | -5~+40 |
| Electrical life | | >6000times |
| Mechanical life | | 20000 times |
| Tropical ration | | Treatmen 2(RH95%,at 55°C) |
| Protection degree | | IP20 |
- Air temperature: use temperature -30℃~+60℃, storage temperature
-40℃~+70℃.
- Altitude: The altitude of the installation site does not exceed
2000 meters, and the altitude of more than 2000 meters should be
derated for use.
- Atmospheric conditions: The relative humidity of the air at the
installation site does not exceed 50% at +40°C, and the average
humidity of the wettest month does not exceed 90% at +20°C.
- Installation category: The installation category is Ⅲ and Ⅲ.
Pollution degree: Level 2. Installation method: Use TH35-7.5
standard rail installation.
- Installation conditions: The inclination between the installation
surface and the vertical surface should not exceed 5°, and the
installation site should be free of significant impact and
vibration.
- Wiring method: Use screw compression connection to ensure fast and
safe connection of conductors.
Packing Detail
1. Product Net weight: 100g/pole
2. Packing quantity& Weight: 12 pole /box, 20 box/carton, 240
pole/carton .
3. N.W: 23KG/carton
4. G.W:24KG/carton
5. Packing Measurement: inner box 22.5×9×8 cm, Carton 45×23.5×33.5
cm ( ie 0.036 cbm)
6. 20 foot container (26 cbm): 19,2000 pole ,800 cartons
7. 40 foot container (54 cbm): 38,4000 pole, 1600 cartons
The Over-Current Protection Property
MCB Selection
The first characteristic is the overload which is intended to
prevent the accidental overloading of the cable in a no fault
situation. The speed of the MCB tripping will vary with the degree
of the overload. This is usually achieved by the use of a thermal
device in the MCB.
The second characteristic is the magnetic fault protection, which
is intended to operate when the fault reaches a predetermined level
and to trip the MCB within one tenth of a second. The level of this
magnetic trip gives the MCB its type characteristic as follows:
| Type | Tripping Current | Operating Time |
| Type B | 3 To 5 time full load current | 0.04 To 13 Sec |
| Type C | 5 To 10 times full load current | 0.04 To 5 Sec |
| Type D | 10 To 20 times full load current | 0.04 To 3 Sec |
· The third characteristic is the short circuit protection, which
is intended to protect against heavy faults maybe in thousands of
amps caused by short circuit faults.
· The capability of the MCB to operate under these conditions gives
its short circuit rating in Kilo amps (KA). In general for consumer
units a 6KA fault level is adequate whereas for industrial boards
10KA fault capabilities or above may be required.
Company Introduction
The Company Is a Leading Supplier Of Electrical In China, founded
in year of 1999, Specializing In LV Distribution & Motor
Control,Inductrial Contros,Overvoltage protection, Switching
devices and Other devices, Manufacturing, Operating And Marketing
Into An Organic Whole. Some Our Main Hot Products Are As Miniature
Circuit Breakers,Molded Case Circuit breakers,Residual Current
Device, MCB,RCD,RCBO,MCCB,Surge Protector,Ac
Contactors,Starter,Relay,etc.
Our Company Invests Large Fund And Brains To Research Products To
Fit The Demand Of The Market. High Level Research Group, Advanced
Apparatus And Good Scientific Atmosphere Ensure The Stable And
Reliable Quality, Most Of Our Products Conform To The Requirements
Of IEC,EN,GB,BS,It Is Mainly Sold To Electrical Company And
Distribution Company In Abroad, Such as Uk,Brazil,Mexico,
Russia,Benin,Netherlands, South Africa, Iran
,Turkey,Thailand,Indonesia, And So On.
