NBSe Hot Selling Merlin TSM concealed Flush Type Distribution Box, power distribution board

Description
1.Flush Type Distribution Box is kind of good -looking outline,small volume,
2. Easy to install economically modular distribution box.
3. It mainly use for building electric distribution system's installation,
4. Matched and house rebuild fitment etc application.the max rated current is 63A.
5. Products are made with high fire resistant ABS material or PS

Specification:
New Merlin TSM concealedFlush Type Distribution Box(Electrical Distribution Box,Plastic Enclosure)
1. easy installation
2. Plast
Distribution Box
Type Distribution Box(Electrical Distribution Box,Plastic Enclosure)

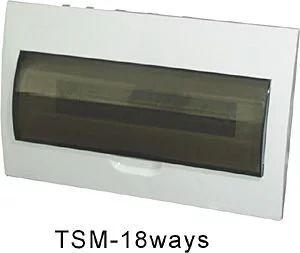

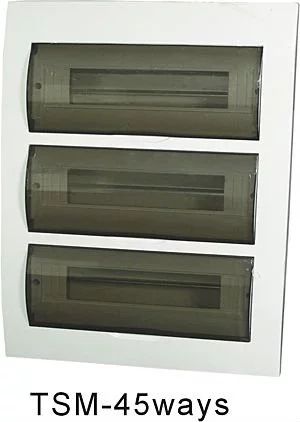

TSM flush mount plastic distribution box, brown cover, surface mount and flush mount avaliable

Advantages:
1. Fashionable design
2. Easy to open:can easily open the cover and easy installation.
3. Convenient installation: When install the Circuit breaker, can put the din rail support panel hung outside the flush boxes, not limit to the narrow space, make the installation more easy.
4. surface mounting type
6. Different ways 4-36 are available for choice.

Metal base size

Iron Base Dimension

Dark plastic crates against the wall-size


Plastics Base Dimension

	L	W	H
2ways	90	140	60
4ways	112	200	66
6ways	150	200	66
8ways	184	200	66
10ways	222	200	66
12ways	256	200	66
15ways	310	200	66
18ways	365	220	76
24ways	257	310	76
36ways	293	455	76
45ways	473	326	76

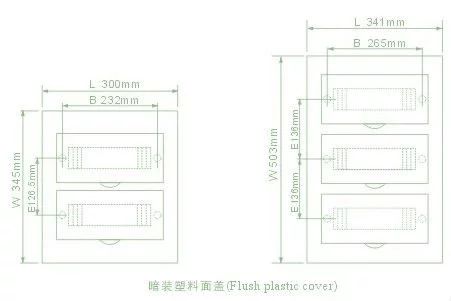

Dark plastic cover surface size


Iron Base Dimension

	L	W	H	B
2ways	95	150	27	75
4ways	136	222	27	86
6ways	172	222	27	122
8ways	208	222	27	158
12ways	280	222	27	230
15ways	334	222	27	283
18ways	398	252	27	338
24ways	300	345	27	232
36ways	341	503	27	265
45ways	365	505	27	285
