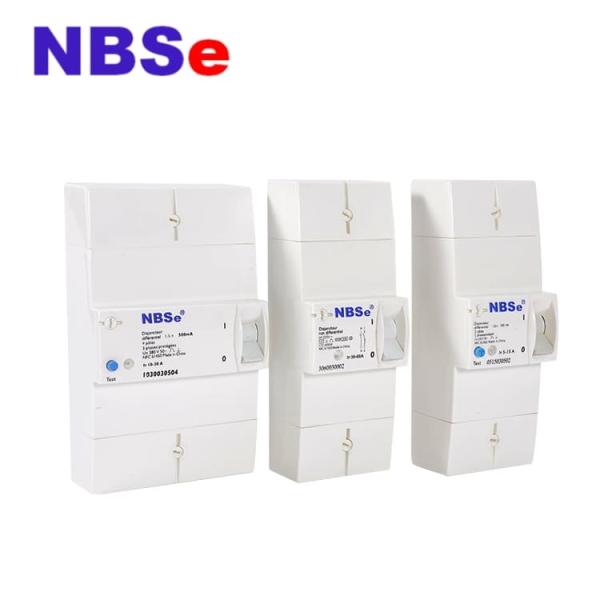

NBSe DDC RCBO Breaker, 5-90A 500mA,baco​

1. Specification and Configuration

POLE: 2P, 4P
Ue: 230/400V
In: 5-15A(5, 10, 15)A;

10-30A(10, 20, 30)A;

10-30A(10, 15, 20, 25, 30)A;

30-60A(30, 45, 60)A;

60-90A(60, 75, 90)A
Breaking Capacity : 3KA

Residual current: 300mA, 500mA

2. Application

The DDC breaker is divided into 2 poles and 4 poles. It can be applied to the circuit breaker installed on the control panel of the primary equipment, and can also be applied to the control terminal of the shopping mall, base station and home power supply board.

Feature as below:

1)This product has a high level of safety protection.

2)Not affected by ambient temperature.

3)Multi-step adjustable of rated current.

4)Rated current digital display.

5)With anti-stealing function

disjoncteur de branchement edf baco

enedis de la marque legrand sert à séparer linstallation électrique privée dun local du domaine appartenant au fournisseur délectricité ce disjoncteur permet également de fermer le circuit électrique cette manipulation est à effectuer manuellement pour sécuriser tous travaux de maintenance ou de rénovation électrique au niveau de linstallation au-delà du seuil de 500 ma il se déclenche automatiquement et coupe le courant dans toute linstallation les du produit bornes de raccordement inclinable de 10° à 30° pour câbler ou décâbler le produit par lavant coupe et sectionne lensemble de linstallation protège contre les surcharges et les courts-circuits cadenassage de la manette pour empêcher le réarmement de lappareil pendant une intervention de maintenance caractéristiques générales disjoncteur de branchement erdf bipolaires et tétrapolaires disjoncteurs dabonné basse tension baco pour tarif à puissance limitée tarif bleu de 3 à 36 kva coupent et sectionnent lensemble de linstallation protègent contre les surcharges.

3. Outshell and installation dimensions

DDC BACO Adjustable circuit breaker.pdf
